Tencent COS Setup Guide

Step-by-step setup for Tencent Cloud Object Storage (COS) and ShrimpSend.

In the Tencent Cloud console, search 「对象存储」 (Object Storage)—that product is COS.

When to use Tencent COS

• Users or infrastructure are primarily in mainland China.
• You want payloads stored on Tencent Cloud.

Prerequisites

1. Sign in to the Tencent Cloud console.
2. Search for Object Storage and enable COS.

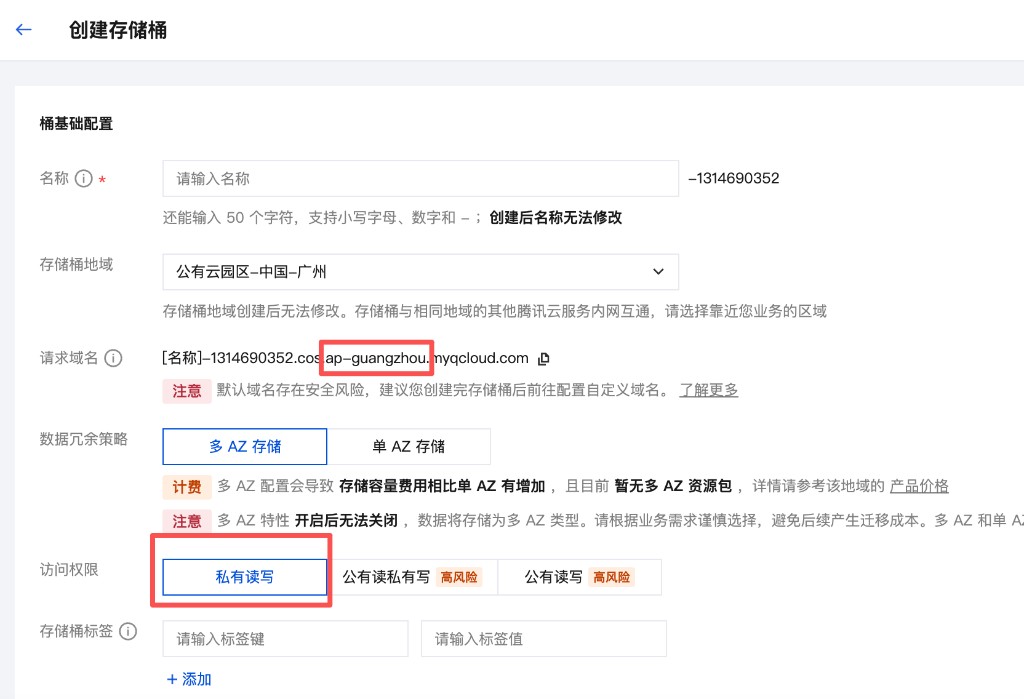

Create a bucket

1. Object Storage → Bucket List → Create Bucket.
2. Choose a globally unique bucket name (cannot be changed later).
3. Select a region (see next section—it drives Endpoint and Region).
4. Set Access permission to Private read/write (recommended; access via keys and presigned URLs).

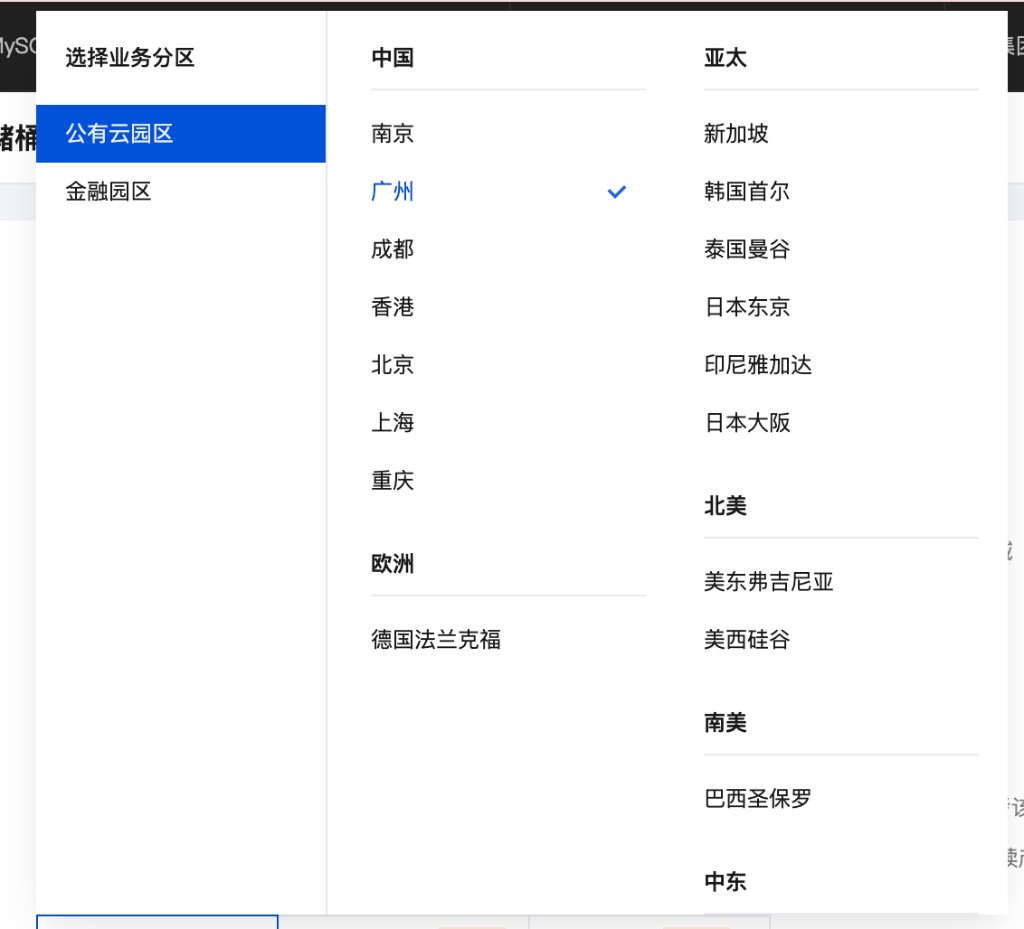

Region, Endpoint, and Region field

The bucket region determines the segment in the S3-compatible Endpoint and must match ShrimpSend’s Region field.

Example for Guangzhou:

• Endpoint: https://cos.ap-guangzhou.myqcloud.com
• Region: ap-guangzhou

The code between cos. and .myqcloud.com (e.g. ap-guangzhou) is the region identifier; it differs per city/zone.

Use the full bucket name for Bucket (often includes APPID suffix, e.g. my-bucket-1314690352).

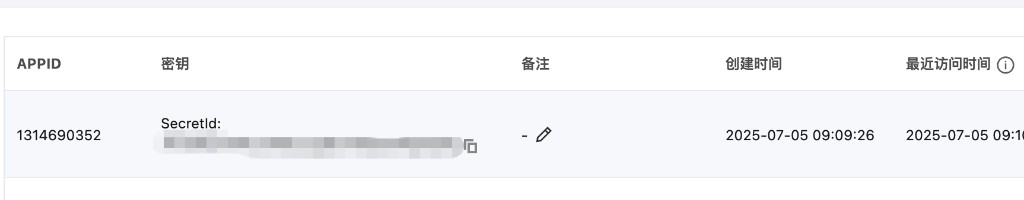

Create API keys

Create keys at API Key Management:

1. Open https://console.cloud.tencent.com/cam/capi.
2. Create a key pair; you receive SecretId and SecretKey.
3. Mapping to ShrimpSend:
   • SecretId → Access Key ID
   • SecretKey → Secret Access Key

Prefer a sub-account key scoped to one bucket; avoid root account keys.

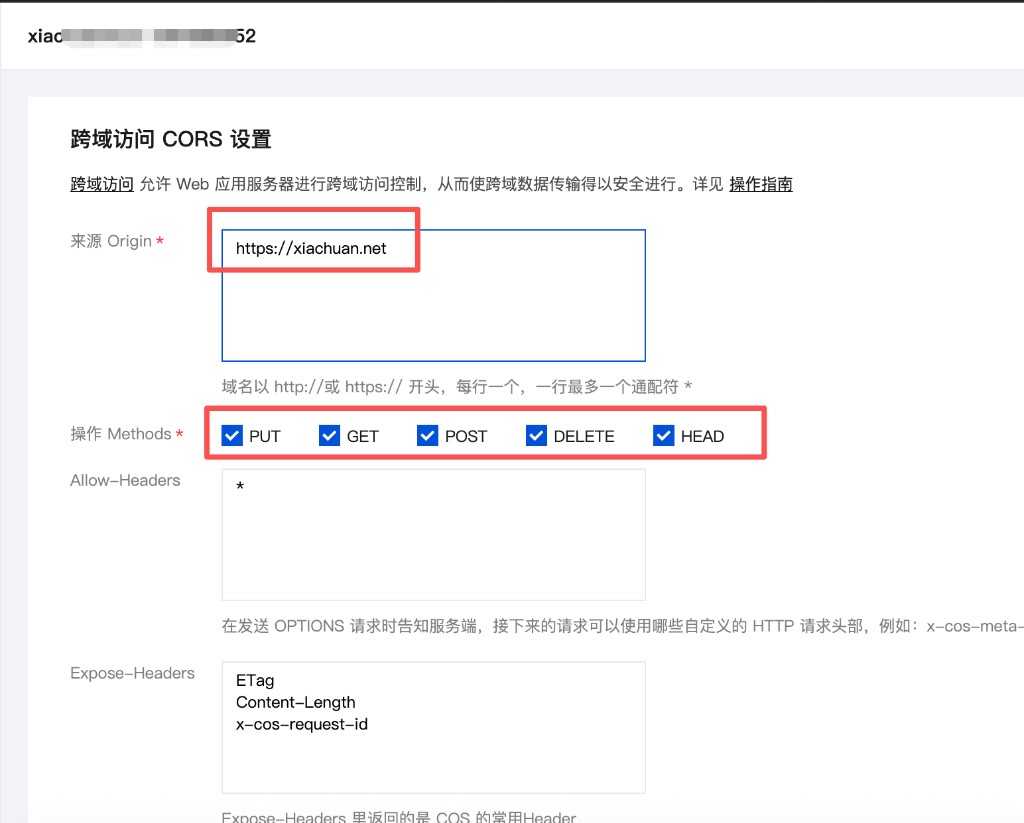

Configure CORS

Bucket → Security → Cross-origin CORS → Add rule. Follow the screenshot:

• Origin: https://xiachuan.net (+ https://www.xiachuan.net if needed)
• Methods: PUT, GET, POST, DELETE, HEAD
• Allow-Headers: *
• Expose-Headers: ETag (optionally Content-Length, x-cos-request-id)

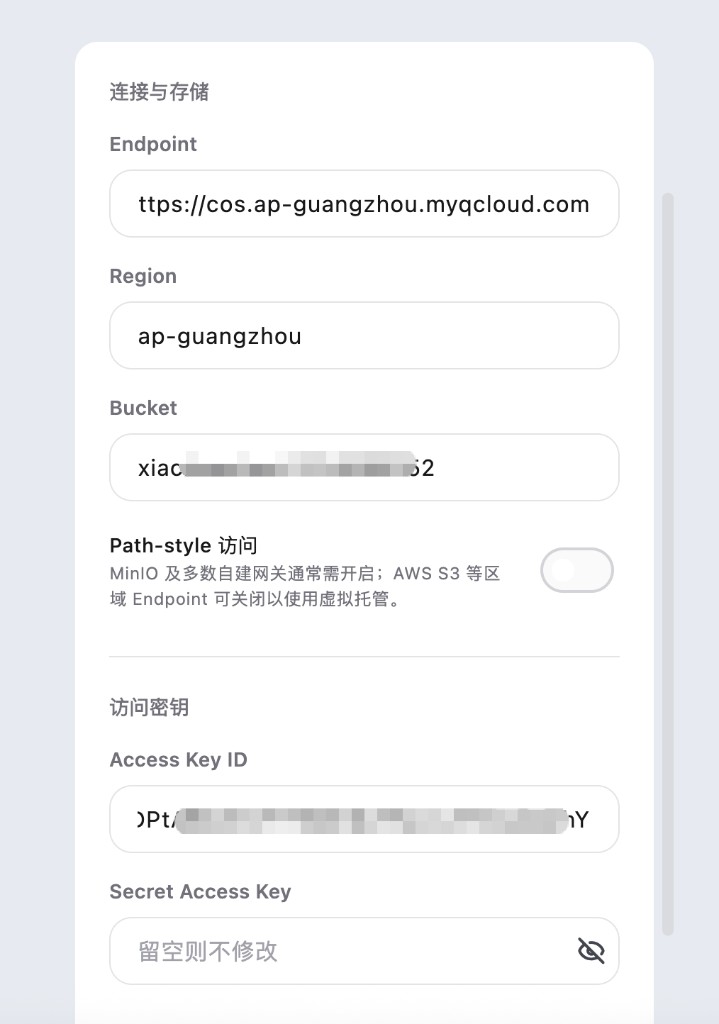

ShrimpSend settings

Test & FAQ

Use Test connection, then verify cross-network upload. Region must match the Endpoint region code (e.g. ap-guangzhou), not the Chinese city name.
