S3 Overview (Mainland China)
Bring-your-own S3-compatible storage powers wide-area file transfer. The web app uploads directly to presigned URLs in the browser, so in addition to Endpoint, credentials, and bucket permissions you must configure bucket CORS correctly.
Use the left sidebar to open step-by-step guides for each cloud provider (with console screenshots).
When you need S3
- Devices are not on the same LAN.
- Files are large and need a stable wide-area relay.
- You want file payloads stored in your own object storage.
- LAN direct, WebRTC, or HTTP direct paths are unavailable.

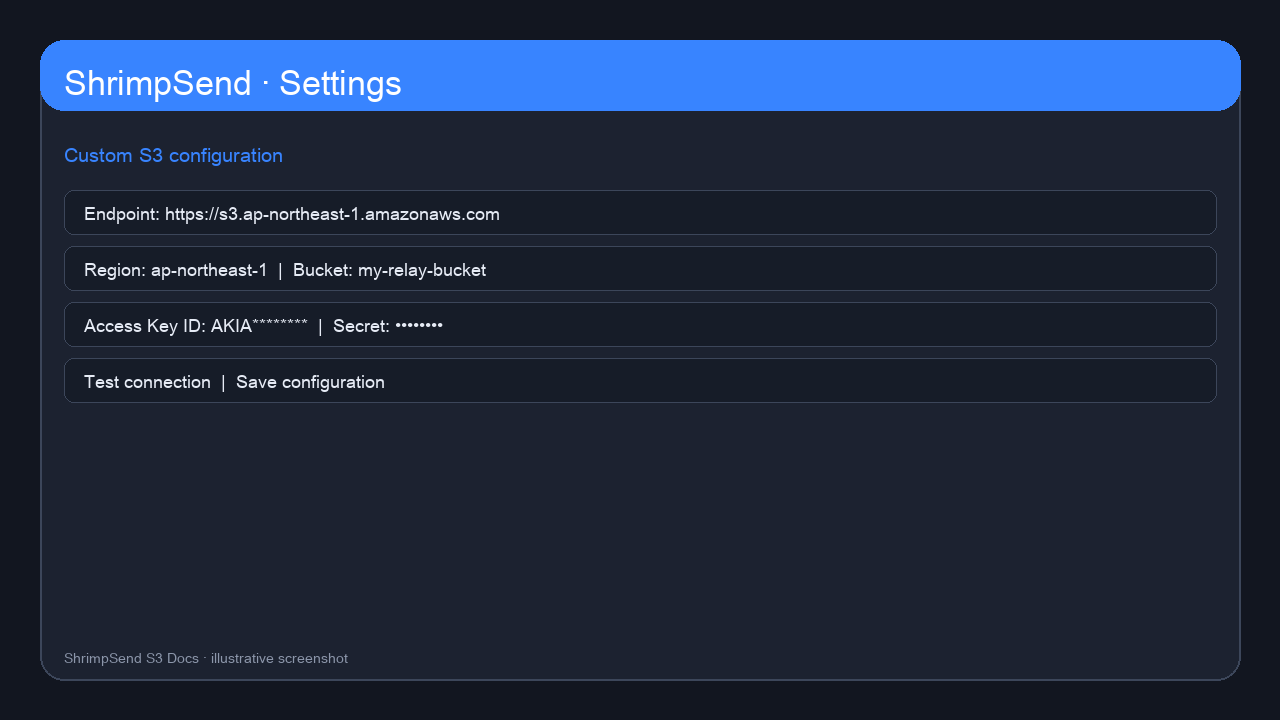

Settings fields
Under Settings → S3, fill in:
| Field | Description |
|---|---|
| Endpoint | S3 API root URL including scheme, e.g. https://cos.ap-guangzhou.myqcloud.com. |
| Region | Bucket region; naming varies by vendor—match the console. |
| Bucket | Bucket used for relay and temporary storage. |
| Access Key ID | Prefer a sub-account key scoped to this bucket only. |
| Secret Access Key | Sent only when saving or testing; leave blank on edit to keep the existing secret. |
Bucket permissions
Create a dedicated sub-account or access key for ShrimpSend with least privilege on the target bucket:
- PutObject, GetObject, DeleteObject.
- Multipart APIs: CreateMultipartUpload, UploadPart, ListParts, CompleteMultipartUpload, AbortMultipartUpload.
Do not use root account keys or grant access to unrelated buckets.
CORS is required
The browser sends cross-origin requests to your storage domain. AllowedOrigins must include the Origin where users open the ShrimpSend web app:
https://xiachuan.net
Add https://www.xiachuan.net if needed. No path suffix; no trailing /.
CORS reference
| Item | Recommended |
|---|---|
| AllowedOrigins | Actual ShrimpSend web Origin(s). |
| AllowedMethods | At least GET, PUT, POST, DELETE, HEAD. |
| AllowedHeaders | * or at least content-type, content-md5, x-amz-*, x-amz-date, authorization. |
| ExposeHeaders | At least ETag. |
| MaxAgeSeconds | e.g. 86400 to reduce preflight traffic. |
Provider guides
Pick your storage vendor in the sidebar (Bitiful is recommended first):
Test connection
After saving, click Test connection. If it fails, check in order:
- Endpoint includes
https://. - Region and Bucket match the console.
- Keys have bucket-scoped permissions.
- CORS includes the current web Origin.
- Storage is reachable from your network.
Data boundary
With custom S3, file bytes live in your bucket. ShrimpSend servers mainly issue presigned URLs and store transfer metadata.
